Production Process

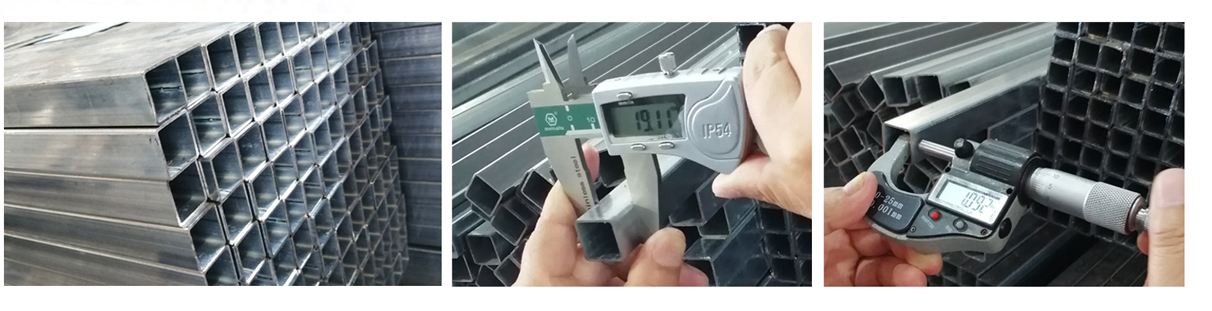

Incoming Inspection

incomming inspection

① IQC inspection on size, ga, coating, and weld line.

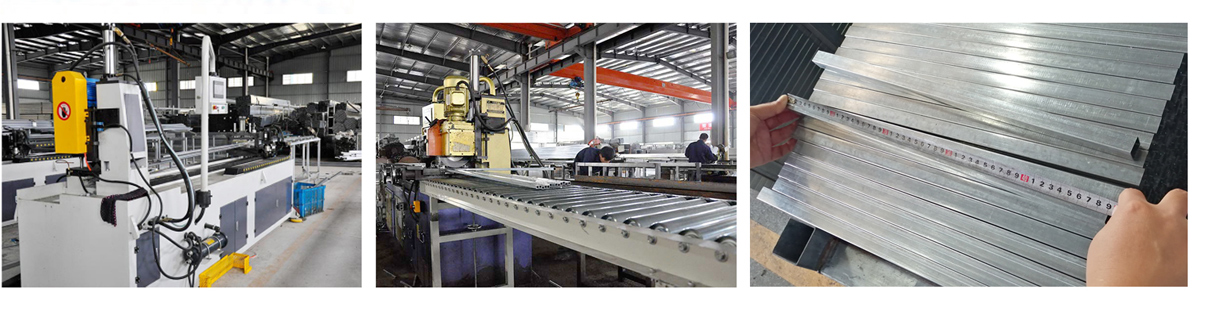

Automatic Cutting

auto cutting

② High speed automated cutting process precision at ±0.01''.

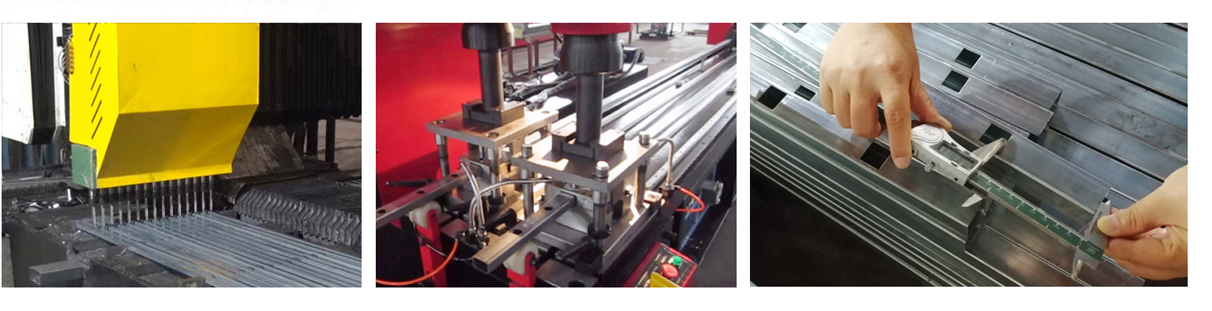

Punching & Drilling

Punching & Drilling

③ Automated punching and drilling machine precision at ±0.02'', no dents or burrs left on material.

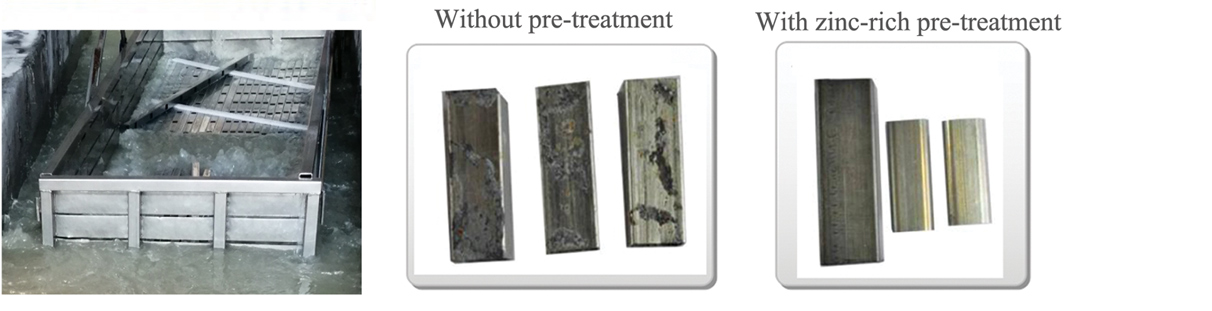

Zinc-rich Phosphating


④ Seven stage pre-treatment with zinc-rich phosphate remove rust and oil, ensure superior adhesion.






Robotic Welding


⑤ Robotic welders for ensure consistent quality and short lead time.

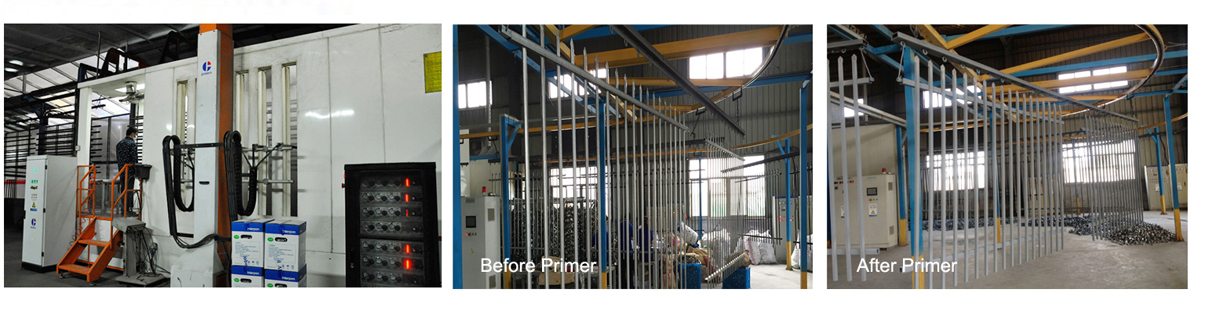

Primer Coating


⑥ Zinc riched primer powder coating cover all welds and cut edges.

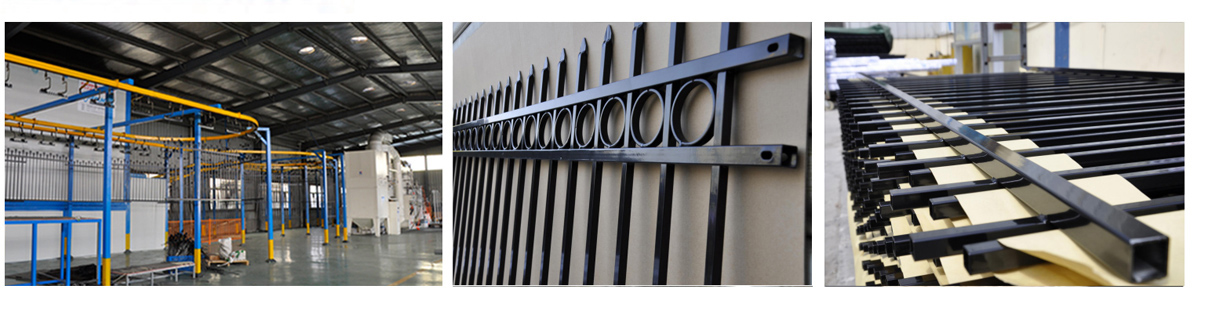

Finish Coating


⑦ Polyester powder coating with exceptional corrosion resistance & UV resistant reliability.

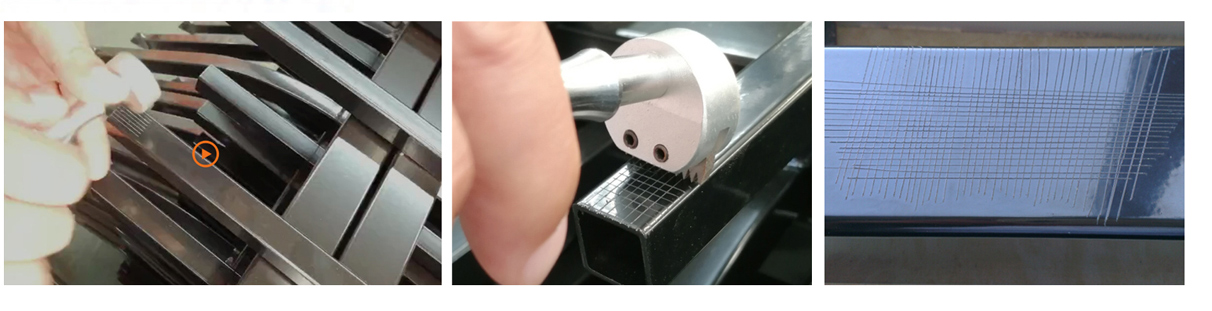

Final Inspection


⑧ FQC test on adhesion before packing ensures only the best products will be delivered.








Pallet Packing

Pallet packing

⑨ Palletized packaging guarantees the integrity of the product delivered.
